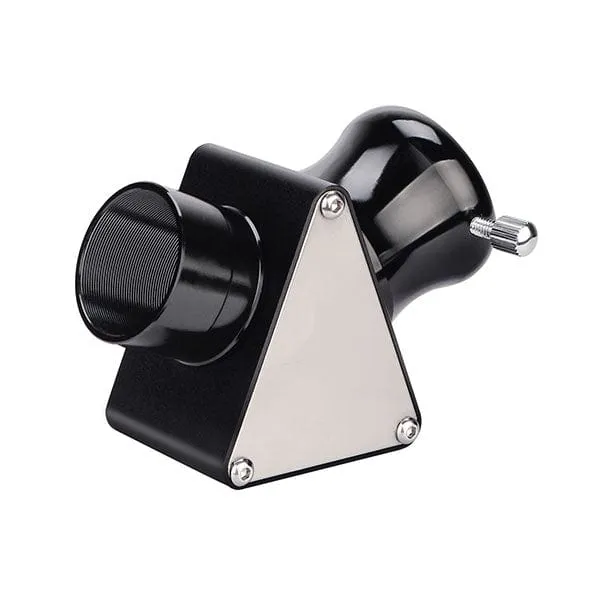

This Svbony 45 degree diagonal has a BK7 prism to ensure high-quality optical characteristics. The black baffle design inside the lens barrel can prevent glare and make the image clearer.
- 45 degree diagonal is made of a CNC aluminum alloy
- BK7 prism to ensure high-quality optical characteristics
- Diagonal is designed with brass ring at the eyepiece port which will not damage the surface of the eyepiece when locking the eyepiece
- In order to make it easier for observers to observe special objects, the Svbony 45 degree diagonal includes a filter thread for installing 1.25" filters
Specifications
| Model | W9107A |
| Prism | BK7 |
| Eyepiece size | 31.7mm±0.05mm |
| color | black |
| Surface treatment process | All-metal CNC oxidation |
| Surface Material of Mirror Body | Stainless steel for Aluminium alloy shell |
| Plug-in manufacturing process | Black Bright Oxidation |
| angle | 45 degree |
| Eyepiece end socket | Design of Brass Ring for Port |
| Specifications | 1.25 inch standard interface |
| side | Double-sided metal oxide trigonometric cover |
| Dust cover | Black and White Dust Covers |
| Bright oxidation intubation | Thread design |
| Net weight | 154g |
